F-Type Right Angle Adapter – 90° Female to Male Connector (Nickel-Plated) 10 Pack

Features

  • Converts Existing F-Type Connectors Into A Convenient 90° Right Angle
  • Right Angle Adapters Allow For Flush Installation Of Your F-Type Coax Cables
  • Compact Solid Metal Build Protrudes A Mere 1.5 cm
  • Blunt Corners & Edges Protect Your Valuables From Potential Dents / Scrapes
  • 1-Year Limited Warranty

$12.99

Out of stock

Buy at Amazon

SKU: CONN-F81-RA-10P

Share this:

Tight Spaces

Right angle adapters are ideal for positioning F-Pin cables flush against a compatible wall port or digital audio/video component.

Quality Construction

Solid metal build ensures secure fits & easy cable handling, while its compact size protrudes a mere 1.5 cm. Blunt corners & edges protect your valuables from potential dents & scratches.

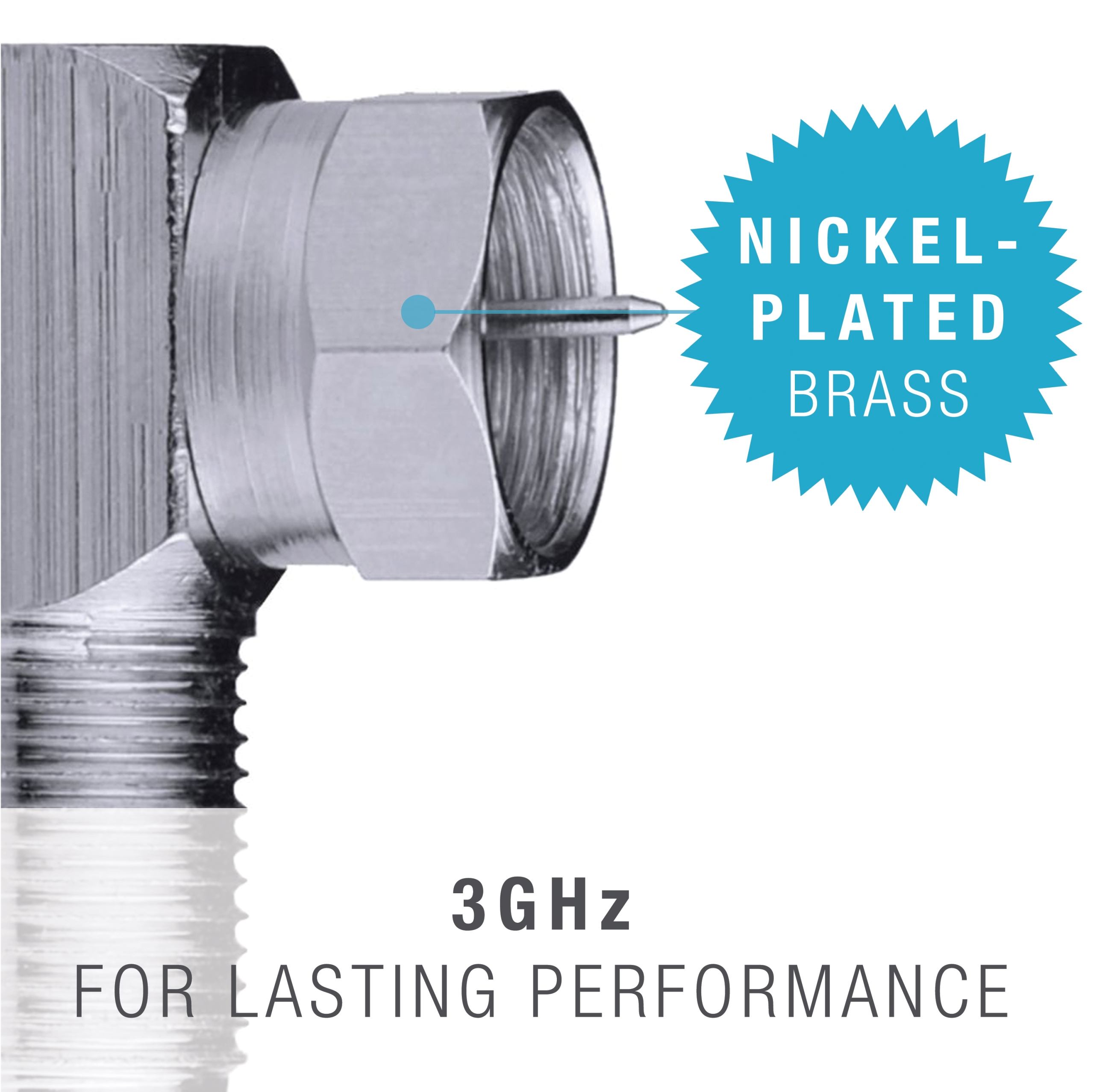

3GHz

3GHz connectors are built with nickel-plated brass for lasting performance.

Low Loss

Achieves high-quality return loss & insertion loss specifications, when compared to conventional F-type connectors.

SKU CONN-F81-RA-10P

ASIN B00K6NTOIK

Product Type F81 RIGHT ANGLE CONNECTOR

Quantity 10

Construction Connections F-Pin Female to F-Pin Male

Orientation Right Angle

Body Brass

Body Finish Nickel

Electrical Frequency Range 5MHz to 3GHz

Impedance 75Ohms

Return Loss >=-24dB up to 3GHz, >=-30dB up to 1GHz

Insertion Loss <=-0.20dB up to 1GHz, <=-0.25dB up to 3GHz

Dimensions Length 1in

Width .6in

Height .6in

Weight .7oz

Warranty Limited 1-Year Warranty

What is the adapter used for?

It positions F-Pin cables flush against a compatible wall port or digital audio/video component. The adapter converts an existing F-Type connector into a convenient 90 degree right angle. This is suitable for tight spaces.

Do I need existing cables to use this?

Yes, the adapter requires an F-Pin digital audio/video cable to connect to.

Do I need more than 1 adapter?

No, only 1 adapter is necessary. However, you can use more than 1 if you have multiple connectors that need to be placed flush against a wall.

How do I know if I need this adapter?

This adapter is meant for tight spaces or stiff cabling. If you’re trying to save wall space, or if your cable signal is being affected by strain, then this adapter is right for you.
